No matter if you go shopping, taking your kids to school, going for a sightseen trip or just commuting to work, you can use the Motorino CBe, a cargo bike that can replace your car in the city and save you a ton of money. Optional accessories are shown: Rear or Front Rack, Child Seat and Protective Railings.

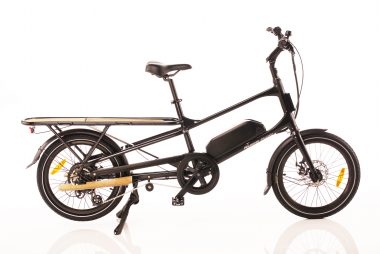

Motorino CBe Cargo Bike
No matter if you go shopping, taking your kids to school, going for a sightseen trip or just commuting to work, you can use the Motorino CBe, a cargo bike that can replace your car in the city and save you a tones of money. It can be also used commercially for delivery with the huge back rack. This bike comes with powerful enough motor to carry total weight of 300Lb easily on steep hills. Thanks to better leverage, the 350W hub motor in the 20” rear wheel provides uphill torque equivalent to 1000W motor of 26” wheel. The bamboo platform and the extra-large rack on the back makes this bike as a car replacement and very suitable to be used as commercial delivery bike.
The bike is equipped with controller that can support nine levels of assistance and digital display that can be connected to Bluetooth phone which you can use it as a dashboard through it you can change the bike settings.

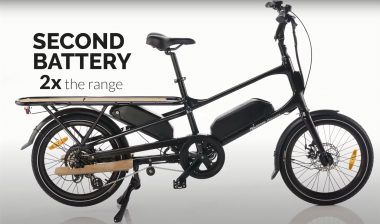

This bike is equipped with equalizing controller that would handle parallel charge and discharge of dual battery pack. The second battery has its rack under the cargo rack and can be added at any time. The dual battery pack can extend the range of the cargo bike to up to 180km distance.

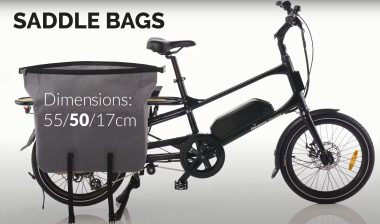

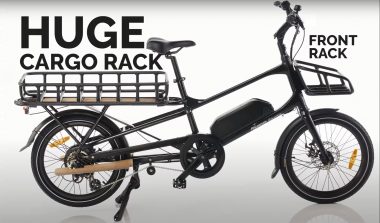

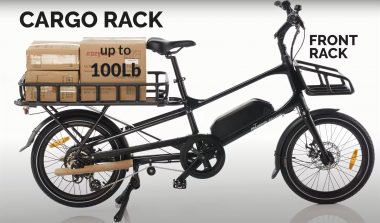

The standard bike comes with nice bamboo platforms on the rear rack and the side of the bike that with no additional accessories can be used to carry up to 150 Lb. The huge rear rack can handle up to 120Lb load and you can carry big boxes on its 29”X13” platform. If you would like the bike for grocery shopping, you can mount big saddle bags where you can fit your Costco shopping load. There is a mount for a front rack as well that can hold additional 20Lb of load.

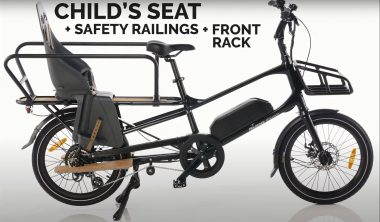

There is enough room on the rear rack for two kids on standard protected bike child seats or child’s seat and a pad for a second child, both surrounded by aluminum safety railing.
Most important, compare to other electric cargo bikes the CBe is at least 20Lb lighter than most of them. It’s total weight including the battery is only 55Lb, same as most regular electric bikes
350W 48V Bafang brushless three-phase high-speed geared-hub motor in rear wheel
48V 13Ah Lithium-Ion LG 26000MAH(M26), 50 cells
48V 22A with Bluetooth
Power assist (via built-in crank torque sensor, 5 levels), power-on-demand (via throttle grip)
Three-button control panel with LCD indicators for battery, odometer, power assist level and speed with Bluetooth
48V 2A Lithium-Ion
20” AL-6061 TIG-welded aluminum alloy, oversized tubing with disc brake mount and second battery mount
45cm (17.5”) (measured from center of pedal axle to top of seat tube), stand-over height with cargo area on the back
20” double-walled aluminum alloy rim, spokes, Modus alloy hub
20” double-walled aluminum alloy rim, 36 spokes, Bafang motor hub
20” x 2.125 Kenda high pressure tires
Kenda Schrader valve
25.4 x 630mm Promax alloy riser
Promax Adjustable Alloy
Promax Wide, comfort padded
30.4*350mm alloy, quick-release height adjustment
20” AL-6061 TIG-welded aluminum alloy, oversized tubing with disc brake mount
Prowheel 170mm 48T forged alloy
Prowheel Sealed bearing cartridge type
Wellgo alloy with light reflectors
Tektro Aries 160mm disc brake
Tektro Aries 160mm disc brake
26.5kg (58.5lb) net weight including battery pack
100kg (220lb) rider + 75kg (165lb) cargo weight
Up to 32 km/h (20 mph) using motor power only (governed according to regulations) depends on cargo weight
Up to 35km (22 miles) per charge without pedaling and 60km (37 miles) with Power Assist, double with second battery
Additional Equipment/Features Included:
Front white LED headlight
Bamboo cargo cover
Child seat with protection tubing
|Big size bag||120|
|Baby Protect rail||80|
|Second Battery 48V13AH||750|
